EP Gold Project

Button
A large pile of dirt is sitting in the middle of a desert

Pilar Gold & Silver Project

Button

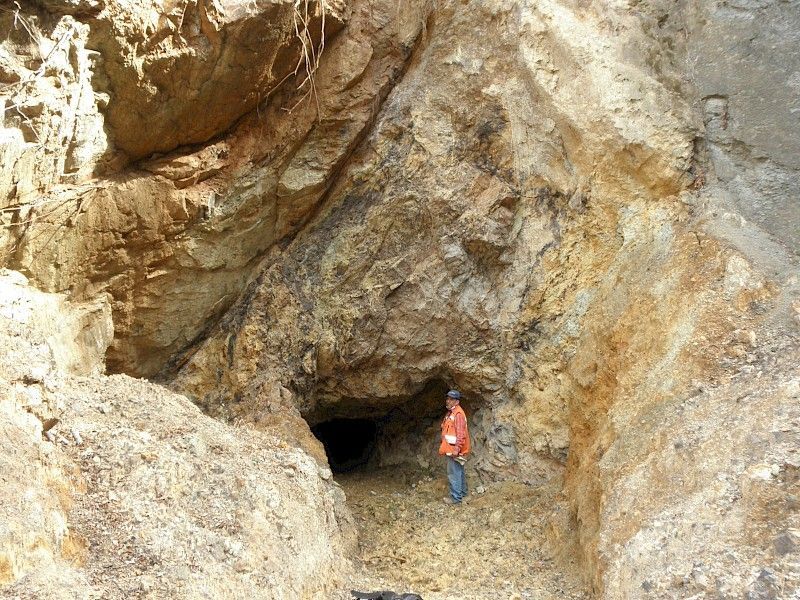

A man in an orange shirt is standing in front of a cave.

Diamante Gold & Silver Project

Button
A pile of dirt and rocks on top of a hill with mountains in the background

Jackie Gold & Silver Project

Button
Region Sonora, Mexico
Location Caborca Orogenic Gold Belt
Metals Au
Ownership 100%
NSR 0% on Evelyn and 2% on Plomo
Size 4,766 Hectares
Stage Drill Exploration
Exploration Targets 14
Type of Mineralization Orogenic / Mesothermal
Active Artisanal Mining Yes

Location & Infrastructure.

Drilling Highlights.

Maps & Photo Gallery.

  • Near a major highway (HWY #2)
  • Infrastructure and support services are available in city of Caborca (pop. 60,000) – 60km SE of EP
  • Accommodation, electricity, internet/phone services available in Caborca
  • Qualified & experienced local workforce
  • Water is available nearby
  • Accessible year round by maintained ranch roads
  • Fresnillo owns in excess of 120k hectares in immediate area as part of a “district consolidation strategy” and is one of Mexico’s largest gold producers and the world’s largest silver producer.

EP Gold Project Summary.

  • A map showing the location of the ep project

    Slide title

    Write your caption here
    Button
  • An aerial view of a desert landscape with mountains and a river.

    Slide title

    Write your caption here
    Button

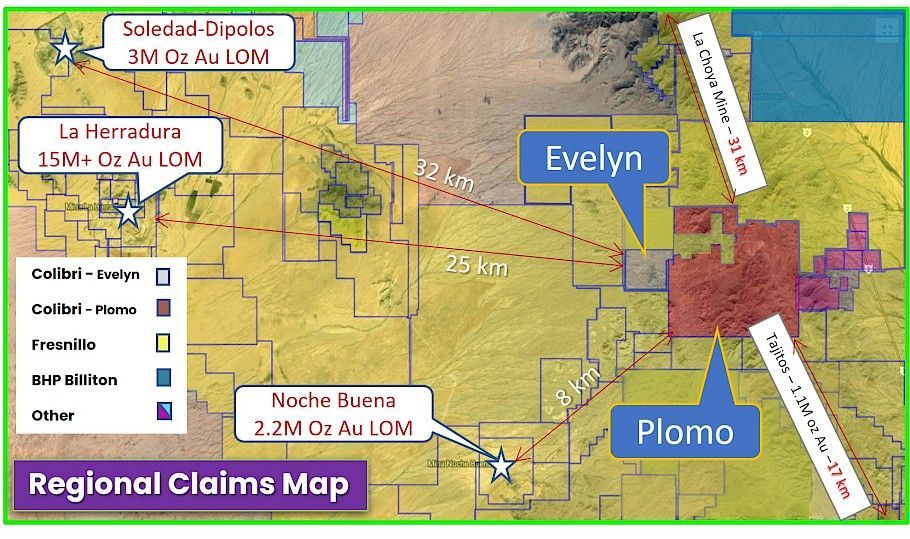

  • A map showing the location of evelyn and plomo

    Slide title

    Write your caption here
    Button

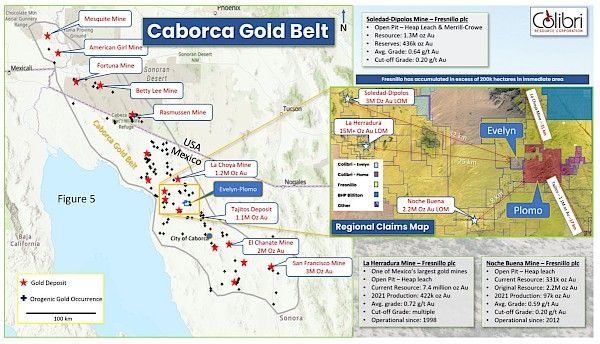

  • A map of the cabora gold belt is shown

    Slide title

    Write your caption here
    Button

MAIN ZONE TARGET:

  • EVE21-027: 14m at 2.63 g/t Au
  • EVE22-029: 5m at 1.39 g/t Au and 9m at 0.18 g/t Au
  • EVE22-042: 86m at 0.17 g/t Au and 6m at 0.18 g/t Au
  • EVE22-184: 29m at 0.47 g/t Au (including 6m at 0.97 g/t Au) and 15m at 0.18 g/t Au



WEST SAHUARO TARGET:

  • EVE23-196: 26m at 0.32 g/t Au and 27m at 0.25 g/t Au (hole ended in mineralization)
  • EVE23-198: 66m at 0.273 g/t Au and 25m at 0.23 g/t Au (hole ended in mineralization)
  • EVE23-201: 50m at 0.18 g/t Au and 11m at .24 g/t Au



SAHUARO TARGET :

  • EVE21-019 : 15m at 2.36 g/t Au and 8m at 0.11 g/t Au
  • EVE22-046: 2m at 1.94 g/t Au, 5m at 0.84 g/t Au, and 11m at 0.68 g/t Au



Note: Average mining cutoff grade in area was 0.15 g/t Au in 2022 (Sub $1,800 USD per ounce)

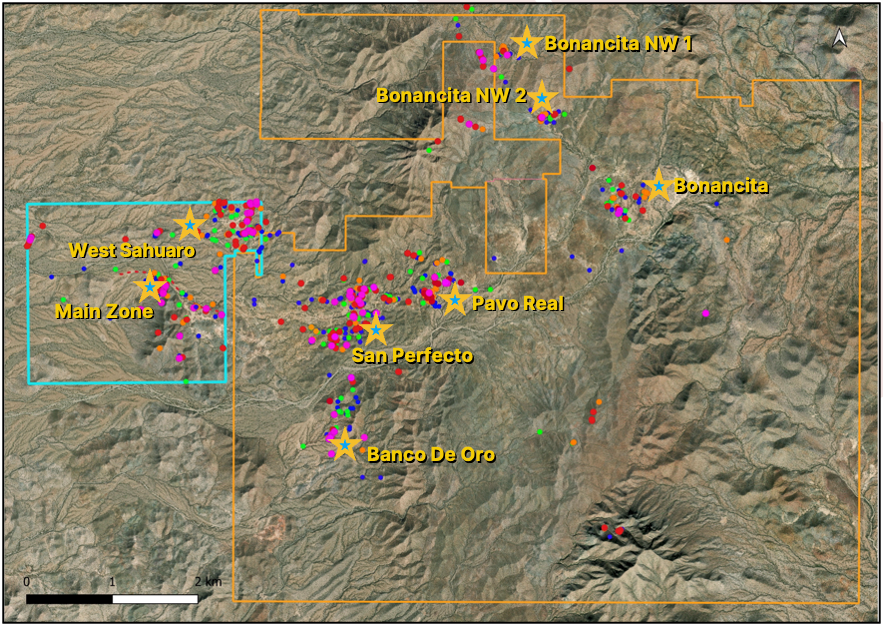

An aerial view of a mountain range with various colored stars
A map showing evelyn drill results on magnetics
A purple and yellow map with the word colibri on it

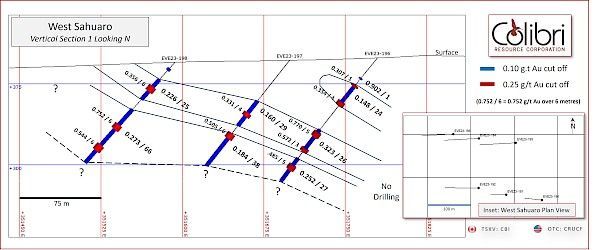

A map showing the location of west saturn

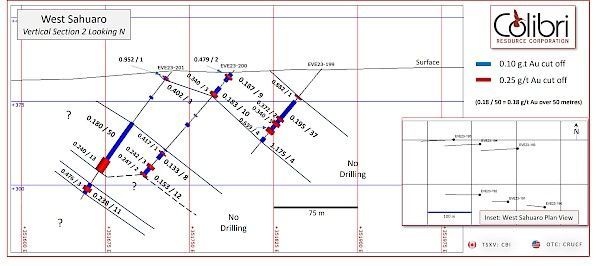

A drawing of a road with the word colliori on it
An aerial view of the main zone target at ep gold project - bulk tonneage potential

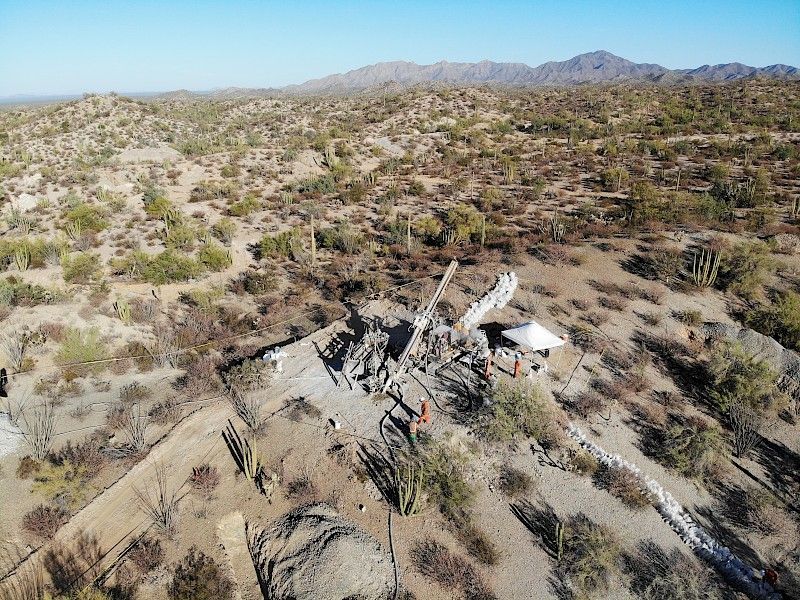

An aerial view of a desert landscape with mountains in the background.

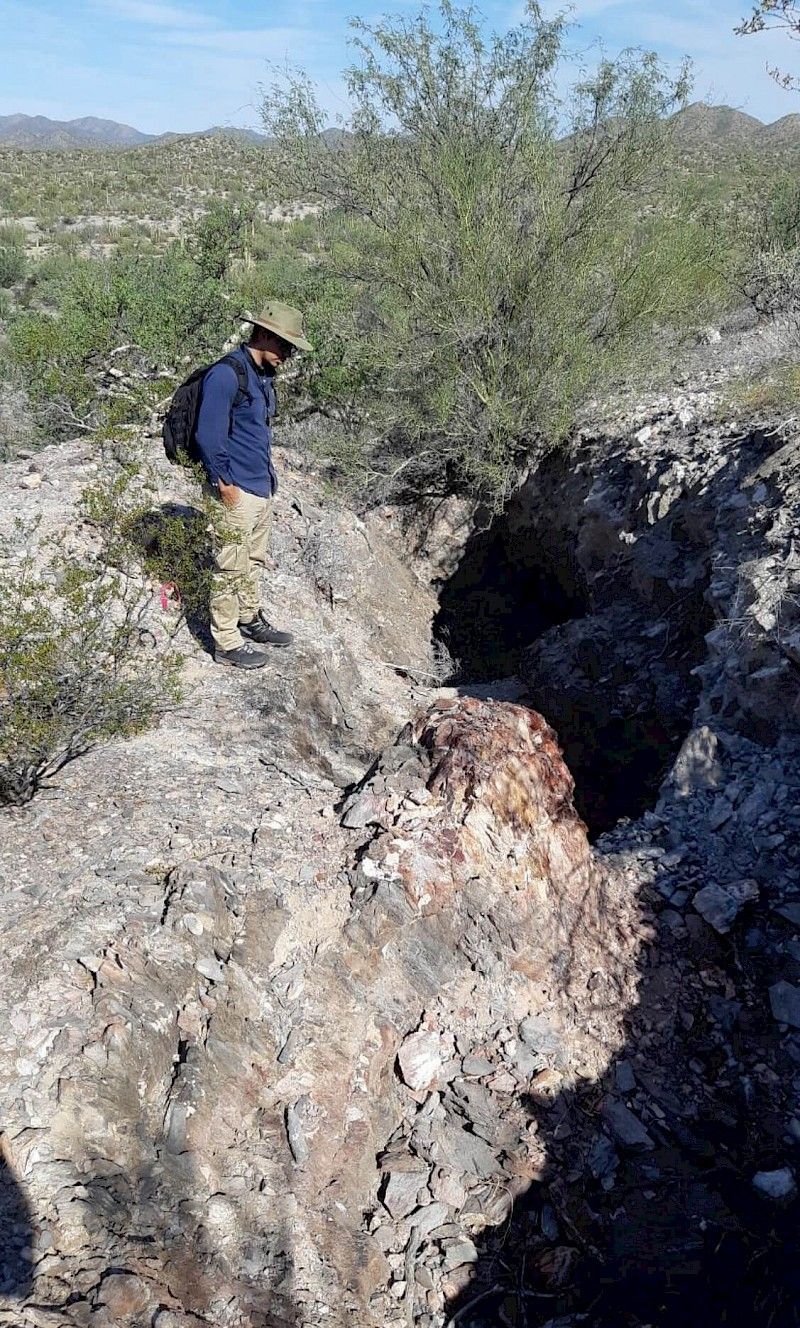

A man is standing on top of a rocky hill.

Qualified person

Jamie Lavigne, PGeo, and a director for Colibri, is a qualified person as defined in National Instrument 43-101 and has reviewed and approved the technical information.
